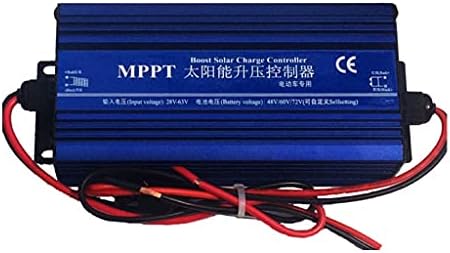

MPPT Solar Controller 600W Car Charging Voltage Regulator High-Efficiency Charging 24/36/48/60/72V Car Charging Voltage Regulator for Home Appliances

Price: $56.52
(as of Apr 29, 2024 05:34:46 UTC – Details)

MPPT Solar Controller 600W Car Charging Voltage Regulator High-efficiency Charging 24/36/48/60/72V car charging voltage regulator for home appliances
Features:
brand new and
MPPT high-efficiency charging the charging efficiency is 97%.
The overcharge for protection function effectively protects the from overcharging.
Anti-reverse connection for protection, both the and board have anti-reverse connection for protection.
Short circuit for protection, with child lock, safe and convenient.
It can be applied to all kinds of batteries, the board takes power, and the standby power consumption is 0.

Specifications:
Voltage Range:
24v/36v/48v/60v/72v (18v Board)
48v/60v/72v (36v Board
Charging Current: 16.7A
Solar Panel Power:
≤300w (18v Board)
≤600w (36v Board)
Solar Panel Input Voltage: 12v~50v (the Voltage of the Solar Panel Needs to Be Lower Than the Voltage)
The Highest Charging Voltage (that Is, Overvoltage for Protection): 28.8v(24v), 43.2v(36v), 57.6v(48v), 72.0(60v), 86.4v(72v), Can Be Set by Yourself
Mppt Voltage Range: 12v-50v
Conversion Efficiency: ≥97%
Load Loss:
28ma (18v Board to 24v
22ma (36v Board 48v
Mppt Tracking Efficiency: ≥98%
Working Temperature: -35℃-65℃
Insulation Resistance: Ac1kv, 5min Test/>=20 Megohms
for Protection Level: Ip30
Size: Approx. 206x43x81mm/8.11×1.69×3.18inch

Package Includes:
1x Solar Controller

Note:
1.Please allow 1-2cm errors due to manual measurement, make sure that you do not mind before you order.
2.Due to the difference between different monitors, the picture may not reflect the actual color of the item.
It can be applied to all kinds of batteries, the board takes power, and the standby power consumption is 0.
Anti-reverse connection for protection, both the and board have anti-reverse connection for protection.
The overcharge for protection function effectively protects the from overcharging.
Short circuit for protection, with child lock, safe and convenient.
MPPT high-efficiency charging the charging efficiency is 97%.
